ICD2 - Clone

Using the plans from Haralds Homepage I did build a ICD2-Clone. My special focus was, to keep the size as small as it makes sense.

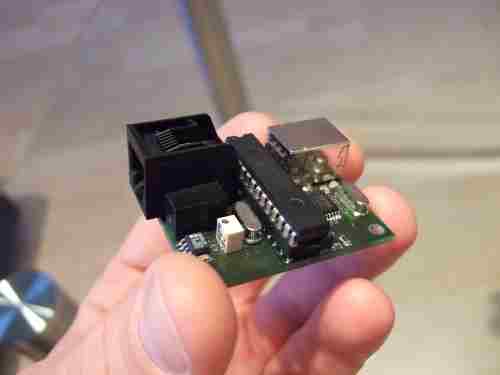

Target-Side

This means for instance that I was using a DIP package instead of the SMD version for the PIC. This way it was easy to program using a PICSTART PLUS.

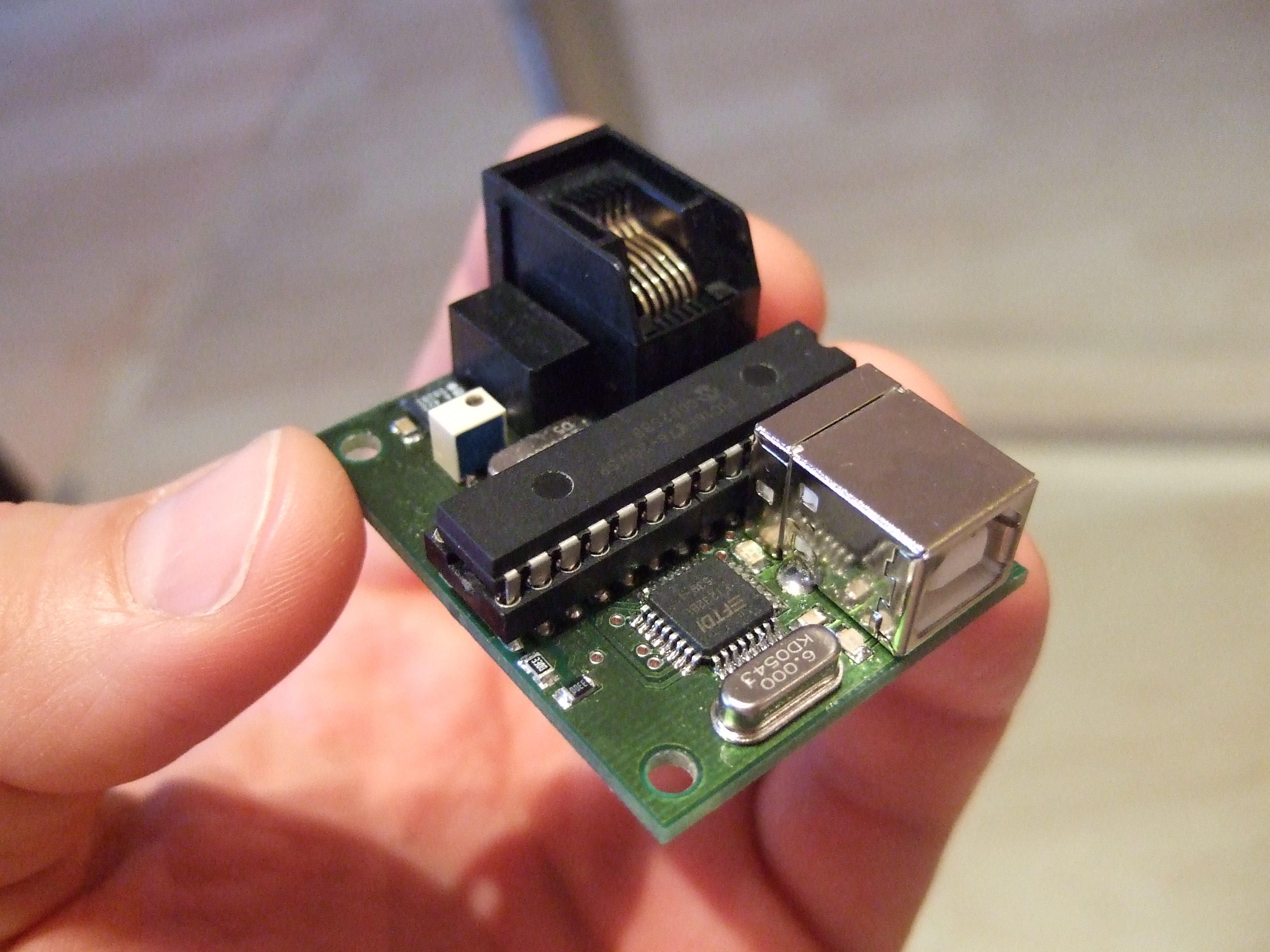

USB-Side

I didn't change anything on Haralds circuit, except for the package of the devices. Furthermore I used a western connector, which makes the ICD2-clone connector compatible to the original ICD2.

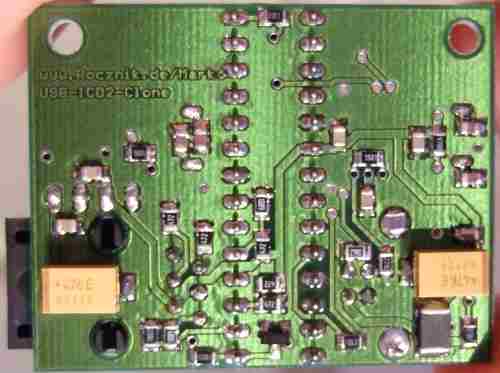

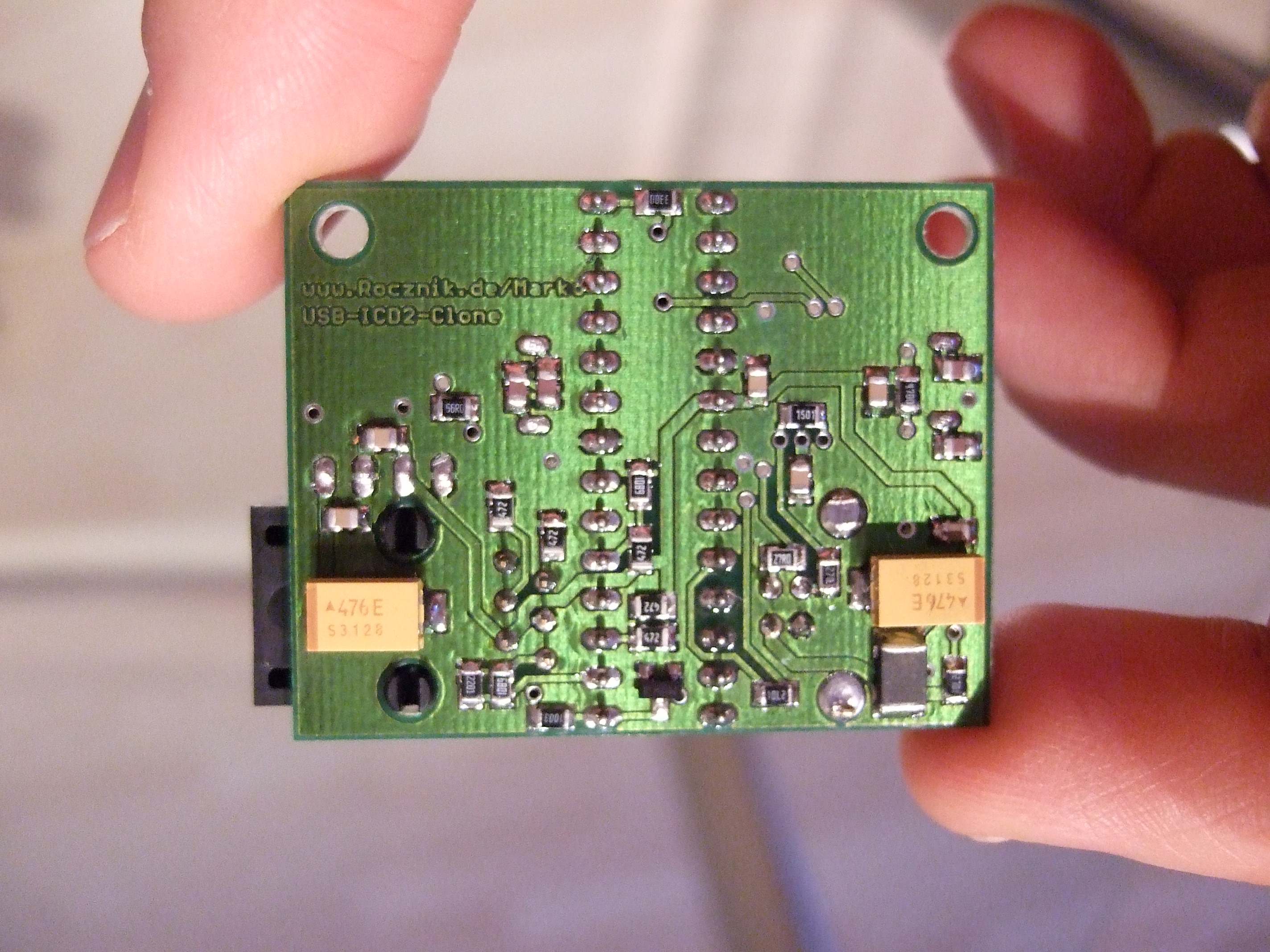

Bottom-Side

All information about how to make it working are given on Haralds Homepage .

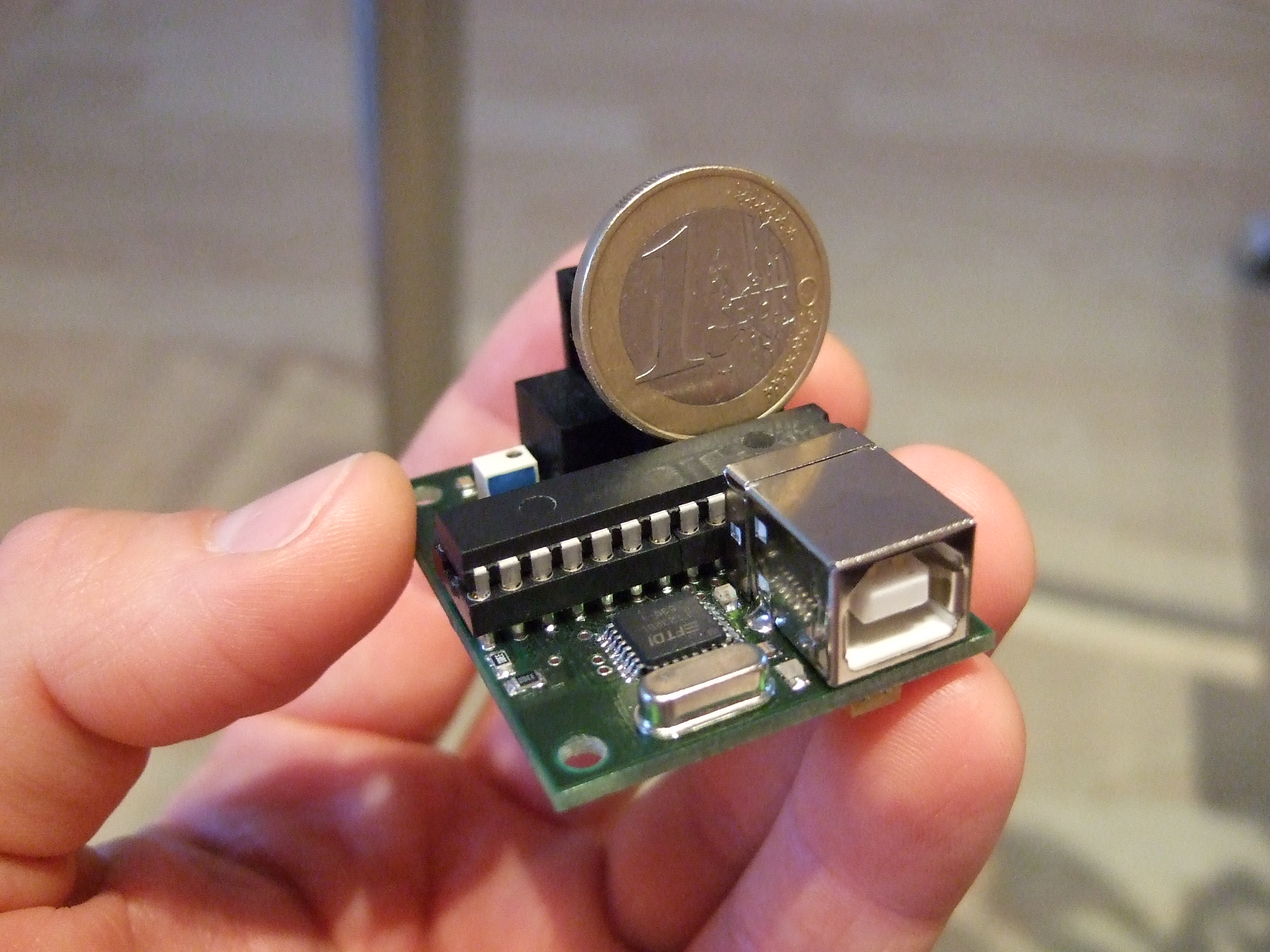

Size comparison
